Melting Pointapparatus Microprocessor Controlled

Melting Pointapparatus Microprocessor Controlled About

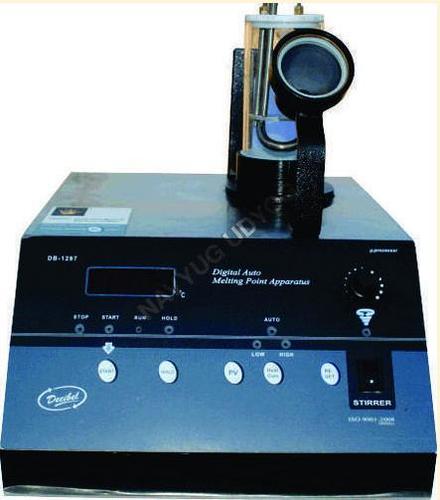

Visualization Technique  Suitable for Dark Colored / any colored samples. Silicon Oil Bath Heating Type, Temp. Range : Up to 300*C, Suitable for Melting / Boiling Point, Readability in C, Resolution 1*C, Programmable, Visual Provision by Optical Magnifier, Automatic Ramp Rate Proceeding, Gradient Rate of Heating Control, Sample Capacity 3 samples. The unit consists of a built in magnetic stirrer, glare free background illuminator and cylindrical silicon oil bath. The silicon oil bath consists of a plain cylindrical container of corning glass having capacity of about 200 ml. it is furnished with a Ptfe cover fitted with special type of oil immersion heater, having three small holes for holding the capillaries, one big hole for thermometer and another big hole for boiling point tube / temp. sensors for calibration purposes. A variable speed stirrer is fitted in it. The apparatus can be used for determination of boiling points, Temp. effect on viscosity / flow points and molecular weights by Rest's  method with suitable accessories.

Melting View : Magnifying display of melting operation with the help of adjustable magnifying glass, Melting point reading hold on by activating the "Hold" key & reading is protected from power failure till "Rest" is not activated.
